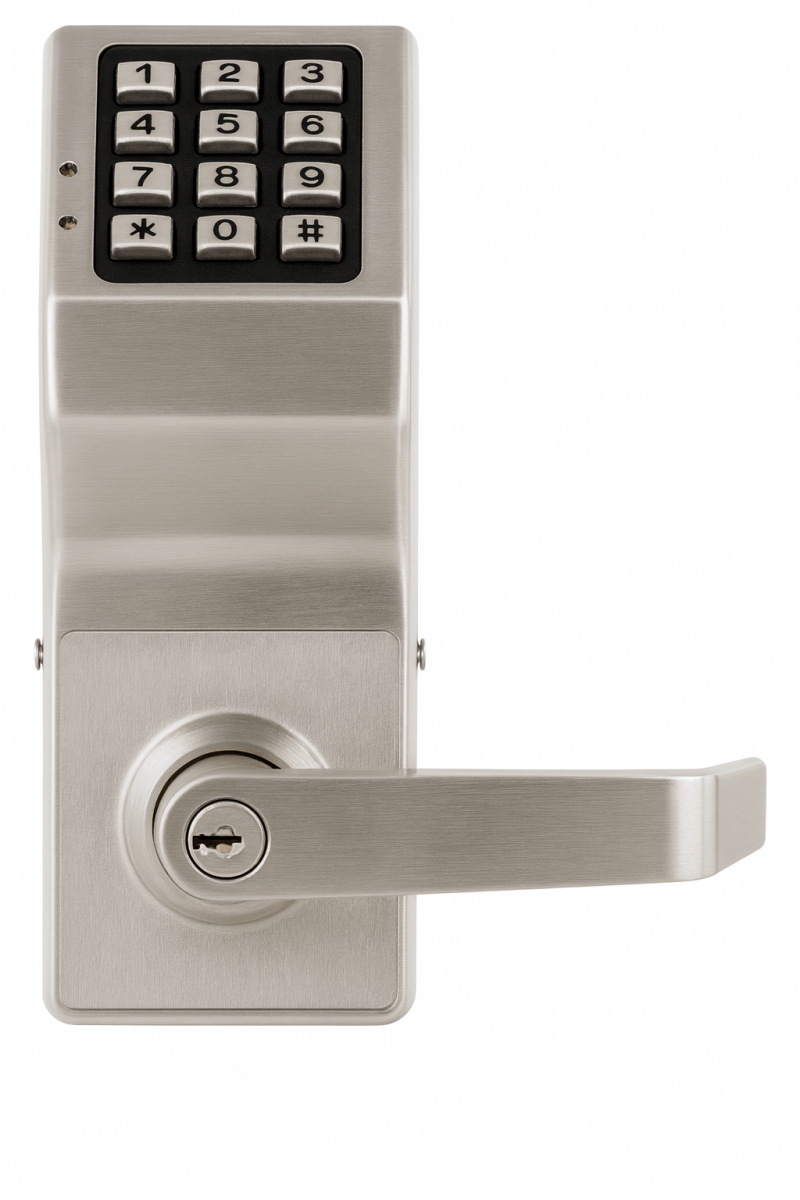

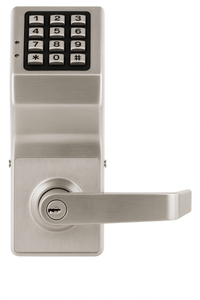

Alarm Lock DL2700IC/26D-R Trilogy Lockset Sargent IC
Only 1 product left
UPC: 785026037406
Pickup available at
Free shipping within the US (4–5 business days).
Returns are accepted within 30 days of delivery in original condition.
All items are shipped in manufacturer-sealed packaging.
Tracking information is provided after dispatch.
We ensure secure packaging to protect your order during transit.
The Alarm Lock DL2700IC/26D-R Trilogy Lockset Sargent IC is designed for commercial and residential doors requiring a programmable, keyless entry solution. It supports Sargent IC cores and can store up to 100 user codes, including master, manager, and one-time service codes, providing organized access management for multiple users.
The lock features a Grade 1 cylindrical construction with an all-metal keypad and a clutch mechanism designed for regular use. It is UL listed with a 3-hour fire rating and is available with weather-resistant options. The unit is intended to operate within a temperature range of -31°F to +151°F (-35°C to +66°C), making it suitable for a variety of installation environments.
Powered by 5 AA batteries, the DL2700IC/26D-R is designed to support up to 200,000 cycles under typical operating conditions. Its non-handed design allows installation on left- or right-handed doors, and it retrofits most cylindrical knobsets and digital locks using ANSI 161 Series Prep. Visual and audible indicators provide feedback on access attempts.
The programmable keypad includes features such as group and individual access modes, passage mode, and override functions. The DL2700IC/26D-R offers a practical option for users seeking a keyless lock with flexible access control capabilities.
| Feature | Specification |
|---|---|
| Sargent IC Core Compatibility | Accepts Sargent IC cores for rekeyable configurations |
| Grade 1 Construction | All-metal keypad and clutch mechanism designed for regular use |
| User Codes | 1 master, 10 manager, 90 user, 3 one-time service codes |
| Power | 5 AA batteries, up to 200,000 cycles (manufacturer rated) |
| Weather-Resistant Option | Intended for operation from -31°F to +151°F (-35°C to +66°C) |
| Fire Rating | UL listed, 3-hour rating |
| Installation | Fits most cylindrical knobsets using ANSI 161 Series Prep |
| Non-Handed Design | Suitable for left- or right-handed doors |
| Access Control Features | Programmable keypad with multi-level access modes and overrides |
| Access Indicators | Visual and audible feedback indicators |
